Feature
Including small and large flake type

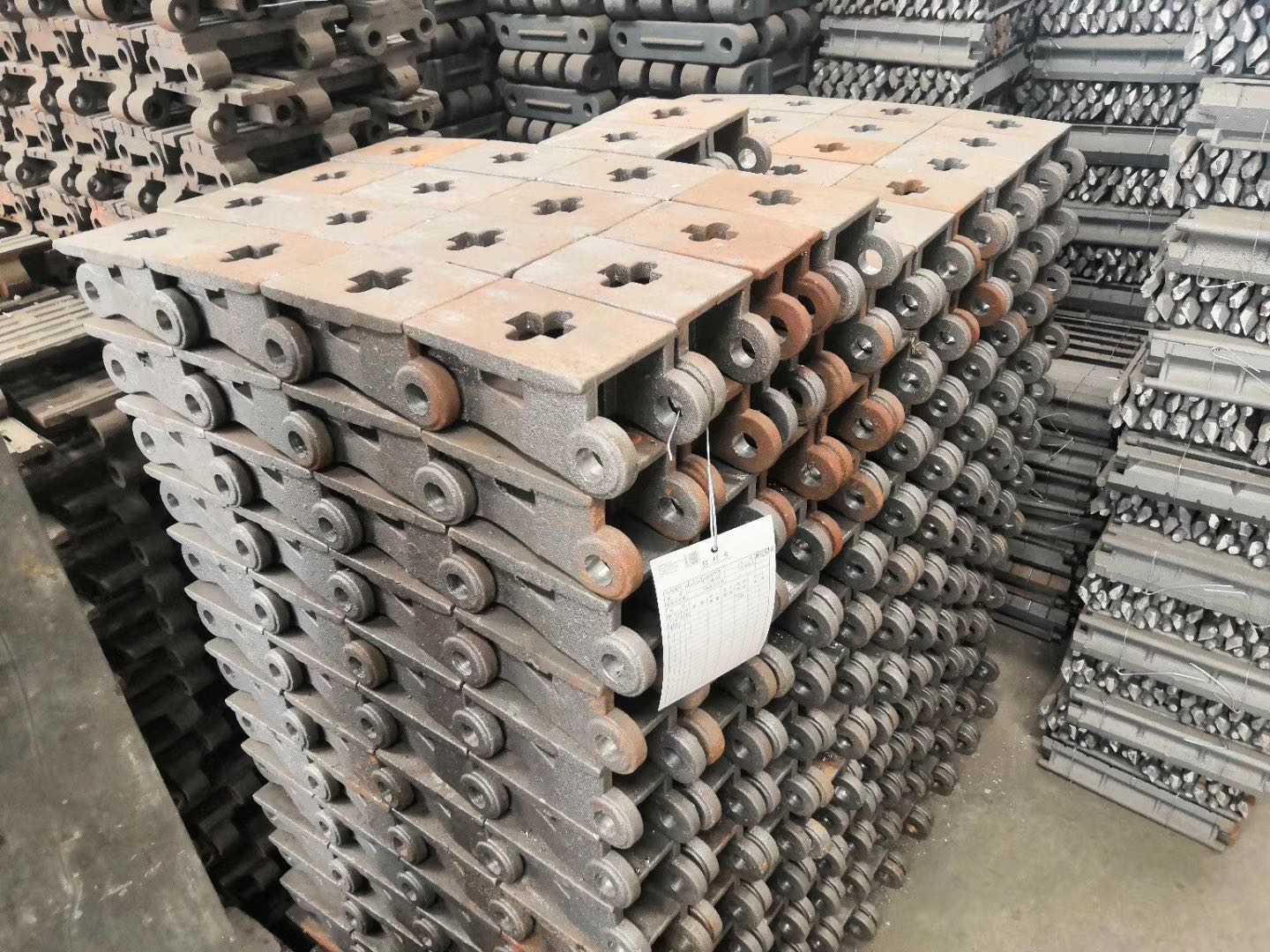

Flake/squama type chain grate stoker (travelling grate) is a new style fire grate. It features compact, easy to install, not using longitudinal slag remover. During the period of installation, it is not necessary to install under guide rail and take civil engineering. What you need to do is to construct a concrete platform at site only. Not only it has the advantages of big squama type chain fire grate, such as good ventilation property, easy to maintain, etc but also it combines the features of light type chain belt fire grate, such as time saving and save labor when install.
It is whole quick assembling type fire grate with single layer arrangement. When purchase this kind of fire grate, customer needs small investment and low installation expense. Its performance of operation is constant and reliable. It is an ideal selection for small and middle boiler factory and use for boiler to match.
Flake type chain grate stoker has two types:
samll flake type chain fire grate: for 1t/h to 25t/h boiler
big flake type chain fire grate: 10t/h to 65t/h boiler
85T/H Heat Resistant Coal Moving Grate Heater Wear Resistant Boiler Chain Grate Bars
china manufacturer industrial chain traveling incinerator grate bars
4-220 T/H Cross-girder grate stoker
2-180 T/H Reciprocating grate stoker
2-100 T/H Flaketype grate stoker
Coal conveyor/ Slag/ Feeder
Detail
●往复炉排使用的燃煤发热值4000大卡左右
·
The heating value of coal for reciprocating grate is about 4000 kcal
·
·
●链条炉排使用的燃煤发热值5000大卡左右 ●煤仓内的燃煤未经过燃饶禁止经炉排倒运到除渣机中
·
Coal burning in coal bunker is not allowed to be transferred to the slag removal machine through the grate
·
·
●燃煤含水量12%左右，最大飘粒度小于5厘米 ●炉排运行时尾部禁止带火，炉排运行时每班观察炉排片一次，炉排片损坏掉落及时更换禁止带病运行
·
When the grate is in operation, it is forbidden to carry fire in the tail. When the grate is in operation, observe the grate sheet once every shift. If the grate sheet is damaged or falls off, it is forbidden to replace it in time
·
·
