Canada biomass greenhouse boiler parts chain grate stoker chain grate bar

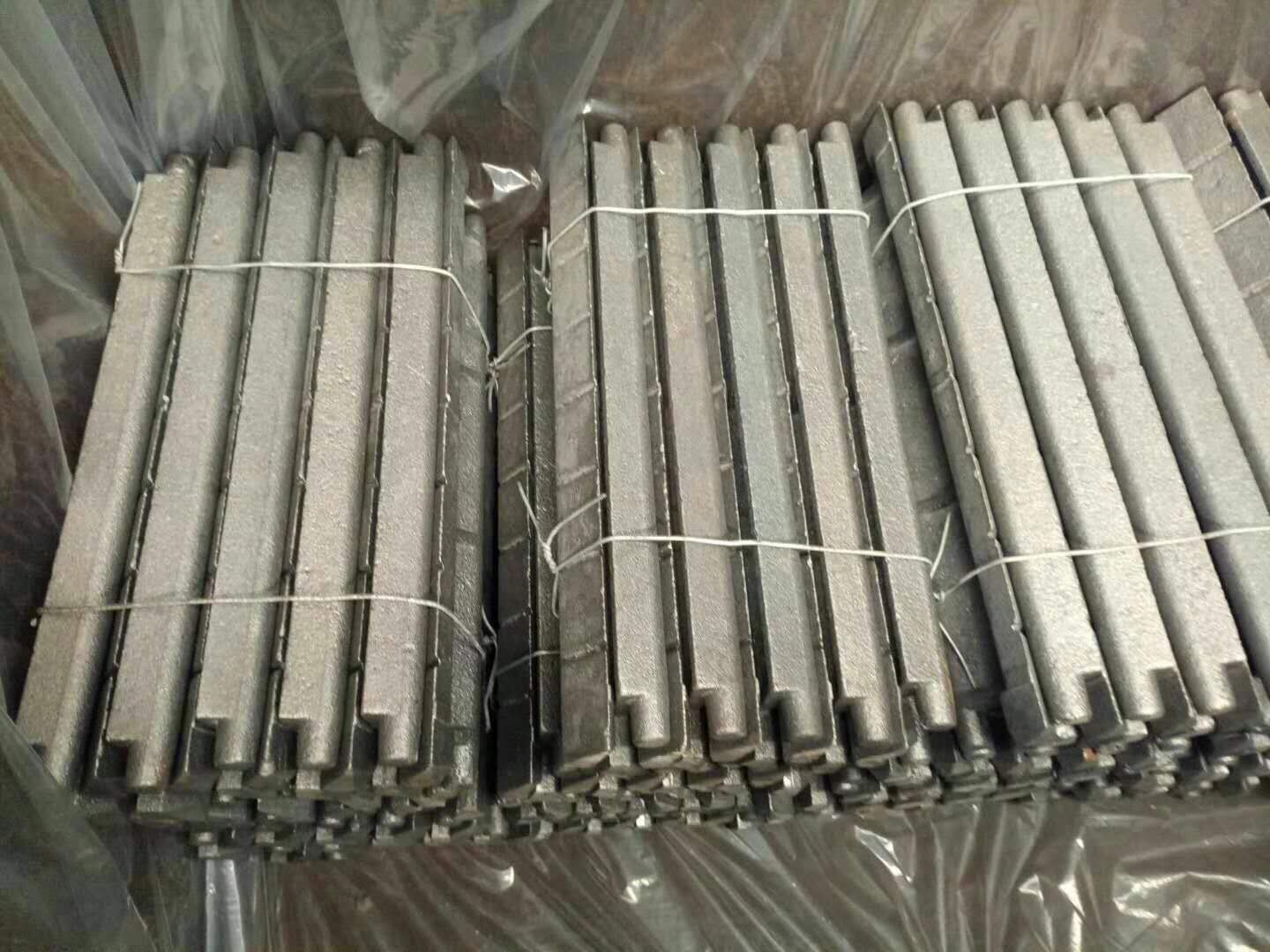

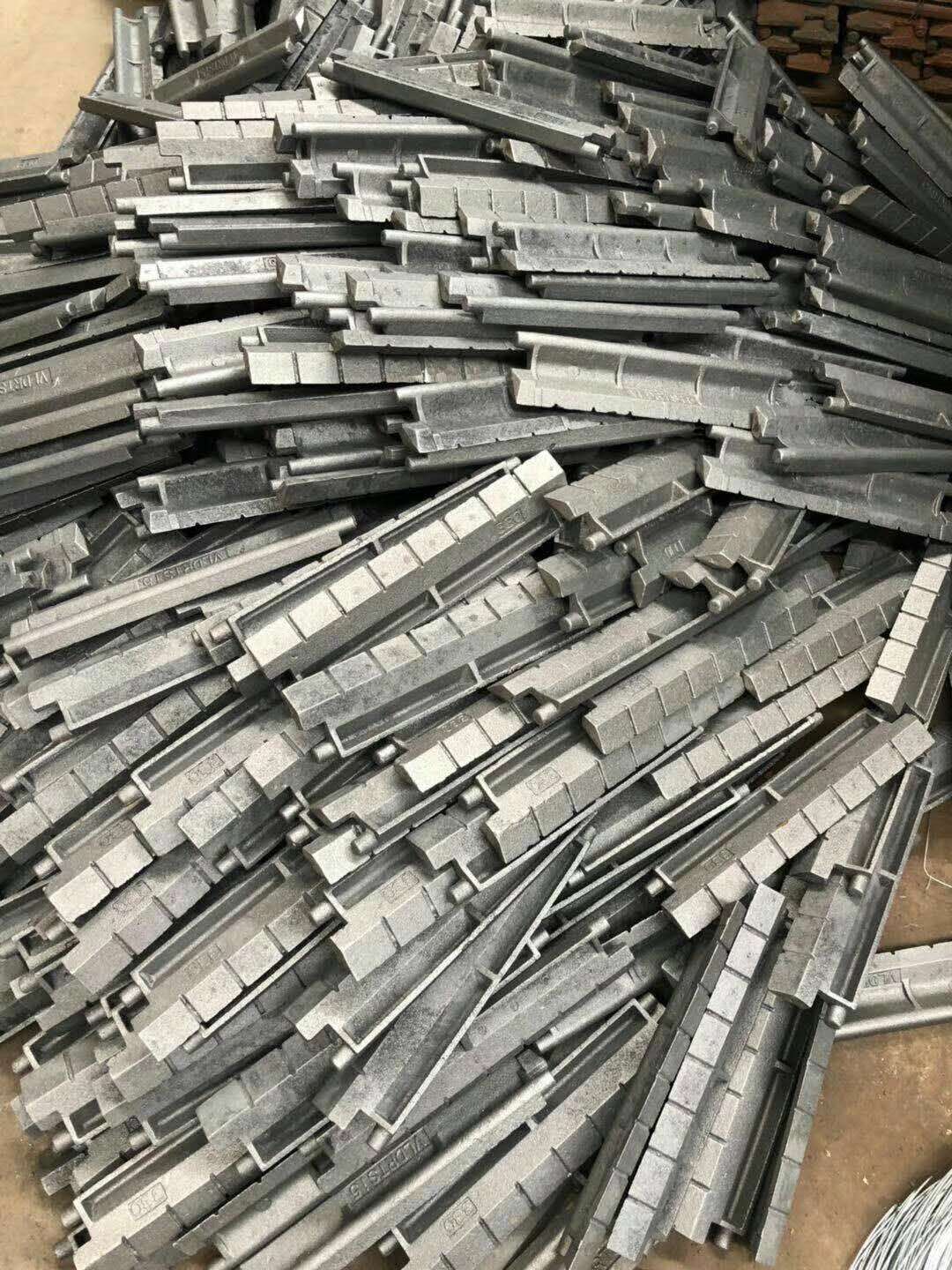

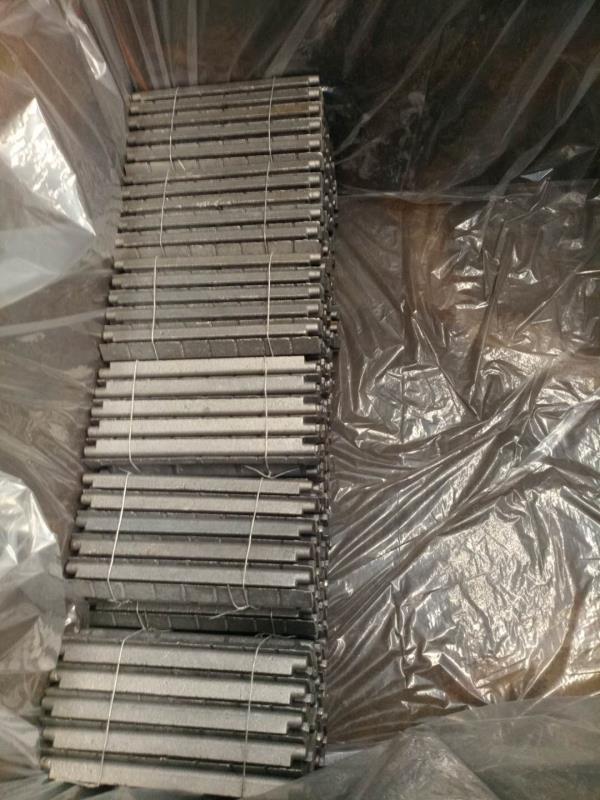

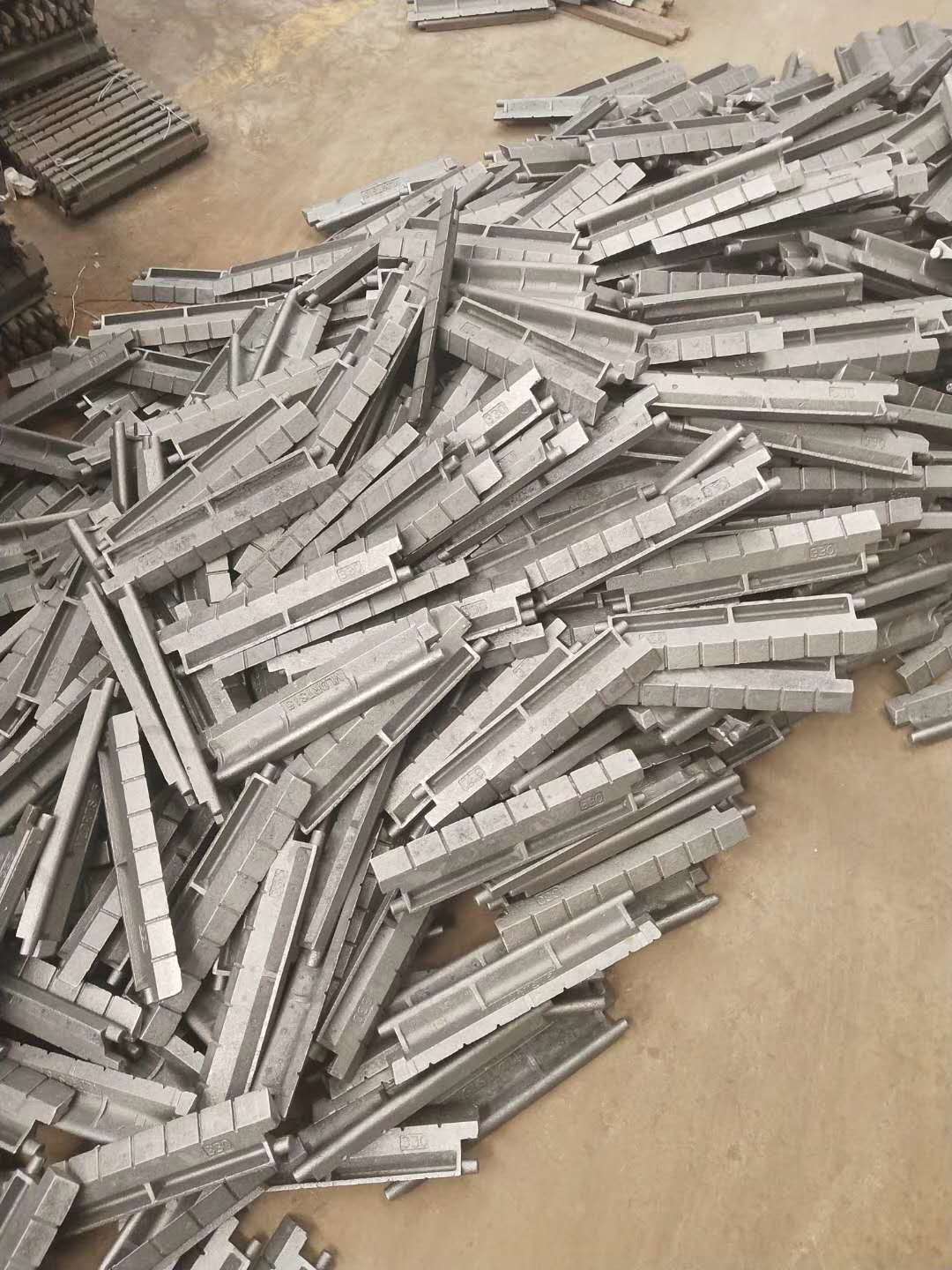

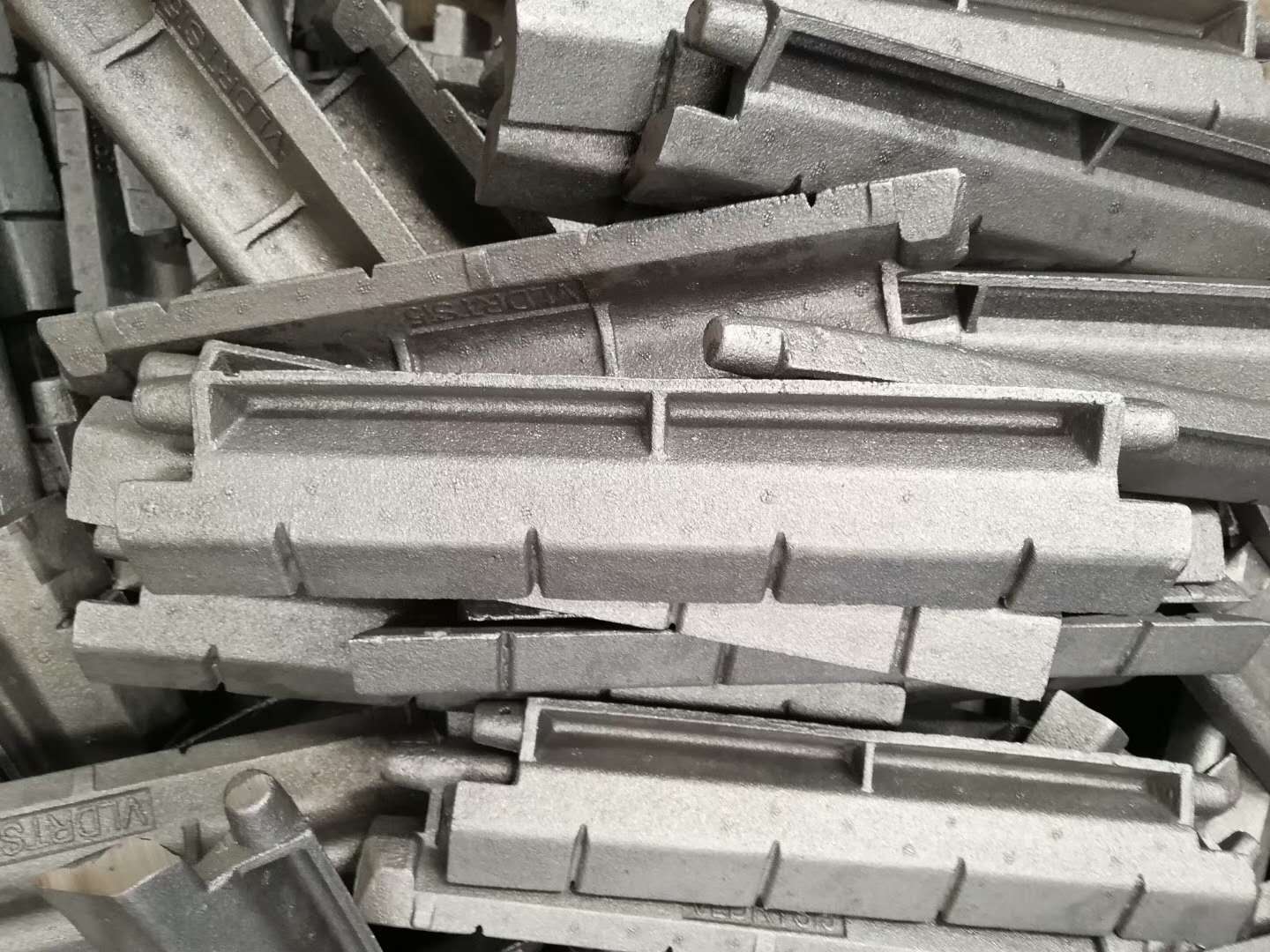

01 Boiler Grate Bar

02 Grate Bar Cr0.8

03 Grate Bar 310mm

Flake type chain grate stoker(travelling grate),

Including small and large flake type

matching for 1-25t (samll),10-65t(large)Flake type chain grate stoker(travelling grate),

Including small and large flake type

Flake/squama type chain grate stoker (travelling grate) is a new style fire grate. It features compact, easy to install, not using longitudinal slag remover. During the period of installation, it is not necessary to install under guide rail and take civil engineering. What you need to do is to construct a concrete platform at site only. Not only it has the advantages of big squama type chain fire grate, such as good ventilation property, easy to maintain, etc but also it combines the features of light type chain belt fire grate, such as time saving and save labor when install.

It is whole quick assembling type fire grate with single layer arrangement. When purchase this kind of fire grate, customer needs small investment and low installation expense. Its performance of operation is constant and reliable. It is an ideal selection for small and middle boiler factory and use for boiler to match.

Flake type chain grate stoker has two types:

samll flake type chain fire grate: for 1t/h to 25t/h boiler

big flake type chain fire grate: 10t/h to 65t/h boiler

85T/H Heat Resistant Coal Moving Grate Heater Wear Resistant Boiler Chain Grate Bars

 china manufacturer industrial chain traveling incinerator grate bars

4-220 T/H Cross-girder grate stoker

2-180 T/H Reciprocating grate stoker

2-100 T/H Flaketype grate stoker

The chain grate stoker is a mechanization equipment applied mostly in steam boiler, hot water boiler and thermal oil boiler. It features reasonable structure, reliable performance and convenient installation, etc.

The series products adapt light chain grate stoker and reasonable air distribution device and also strengthen the seal at both sides of chain grate as well as configuration reasonable front and back arch.

It features strong suitability in combustion and reasonable air distribution for combustion and quick fire starting. Operation practice provided that combustion heat value is about 18840 kJ/kg.
