Croatia power plant biomass boiler travelling grate stoker

Feature

1. How to get a boiler price list?

Pls tell us below to confirm a boiler model and offer the right boiler price:

1) What is the application of the boiler?

2) What is the capacity per hour do you need?

3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?

4) What is the pressure of your boiler?

Features:

1. Compact structure.

2. Lighter weight.

3. Boiler room can decorate single.

4. Apply to 20 t/h boiler adopts the following.

 Coal Fired Chain Grate Stoker Boiler bar

1-20t/h  Chain Belt Grate

2-40t/h  Small Scale Grate

10-50t/h  Large Scale Grate

2-80t/h   Reciprocating Step Grate

10-120t/h  Crossgirder Grate

The chain grate stoker is a mechanization equipment applied mostly in steam boiler, hot water boiler and thermal oil boiler. It features reasonable structure, reliable performance and convenient installation, etc.



The series products adapt light chain grate stoker and reasonable air distribution device and also strengthen the seal at both sides of chain grate as well as configuration reasonable front and back arch.



It features strong suitability in combustion and reasonable air distribution for combustion and quick fire starting. Operation practice provided that combustion heat value is about 18840 kJ/kg.



Soft coal with more than 20% of volatile amount and mixed coal can be combusted normally. Moreover it can also combust waste industrial materials such as wood block, sugarcane residual, etc

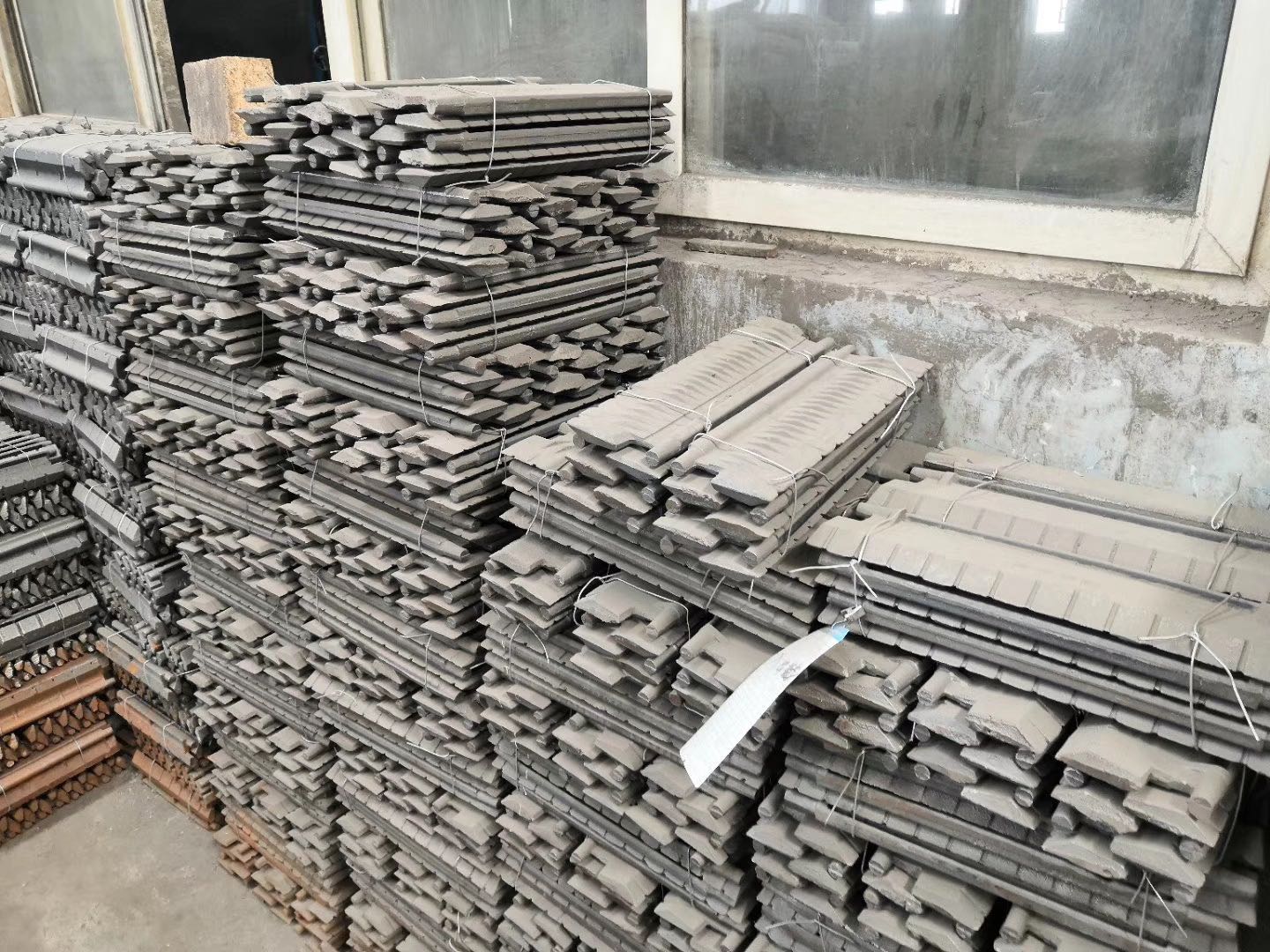

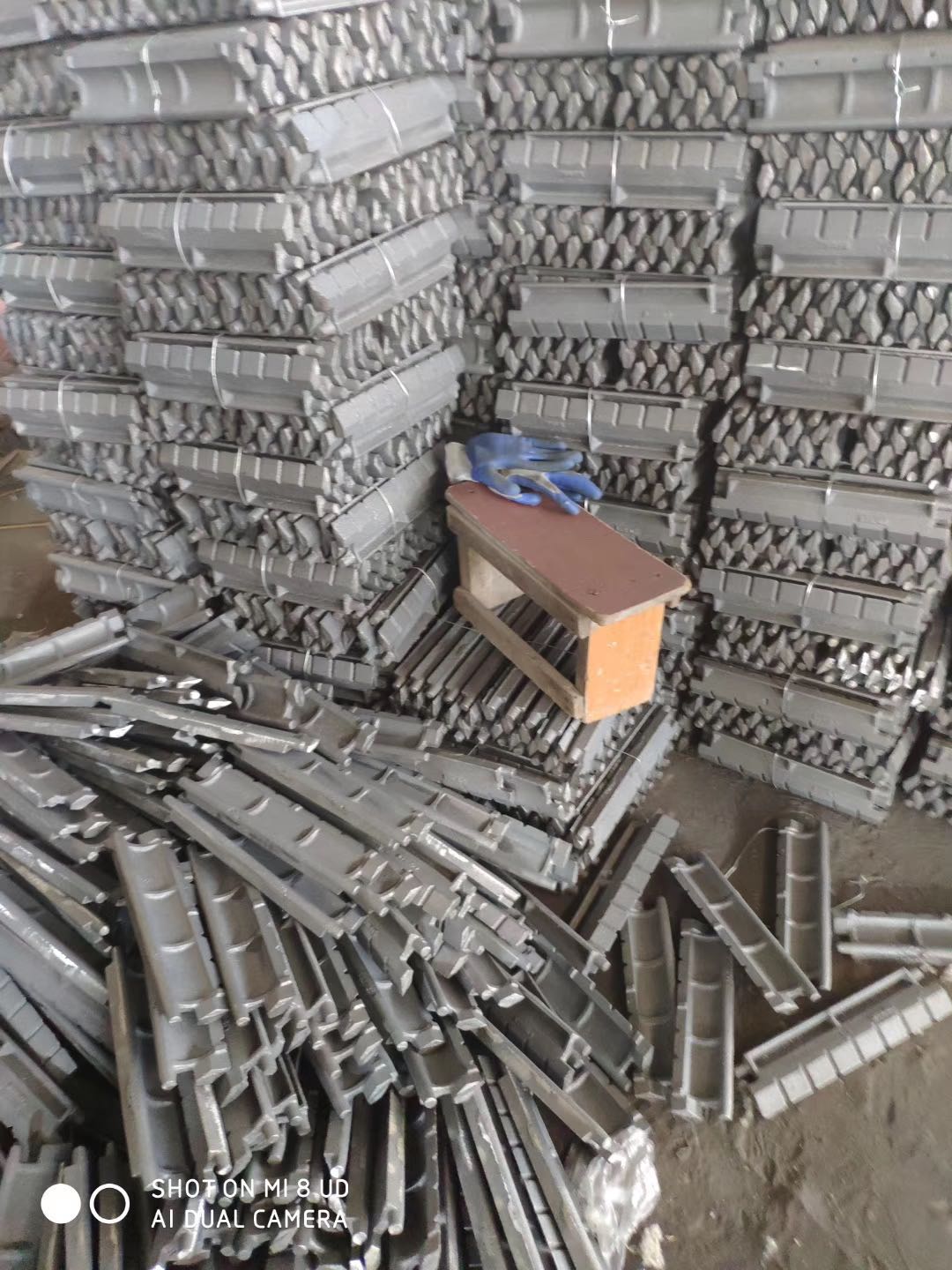

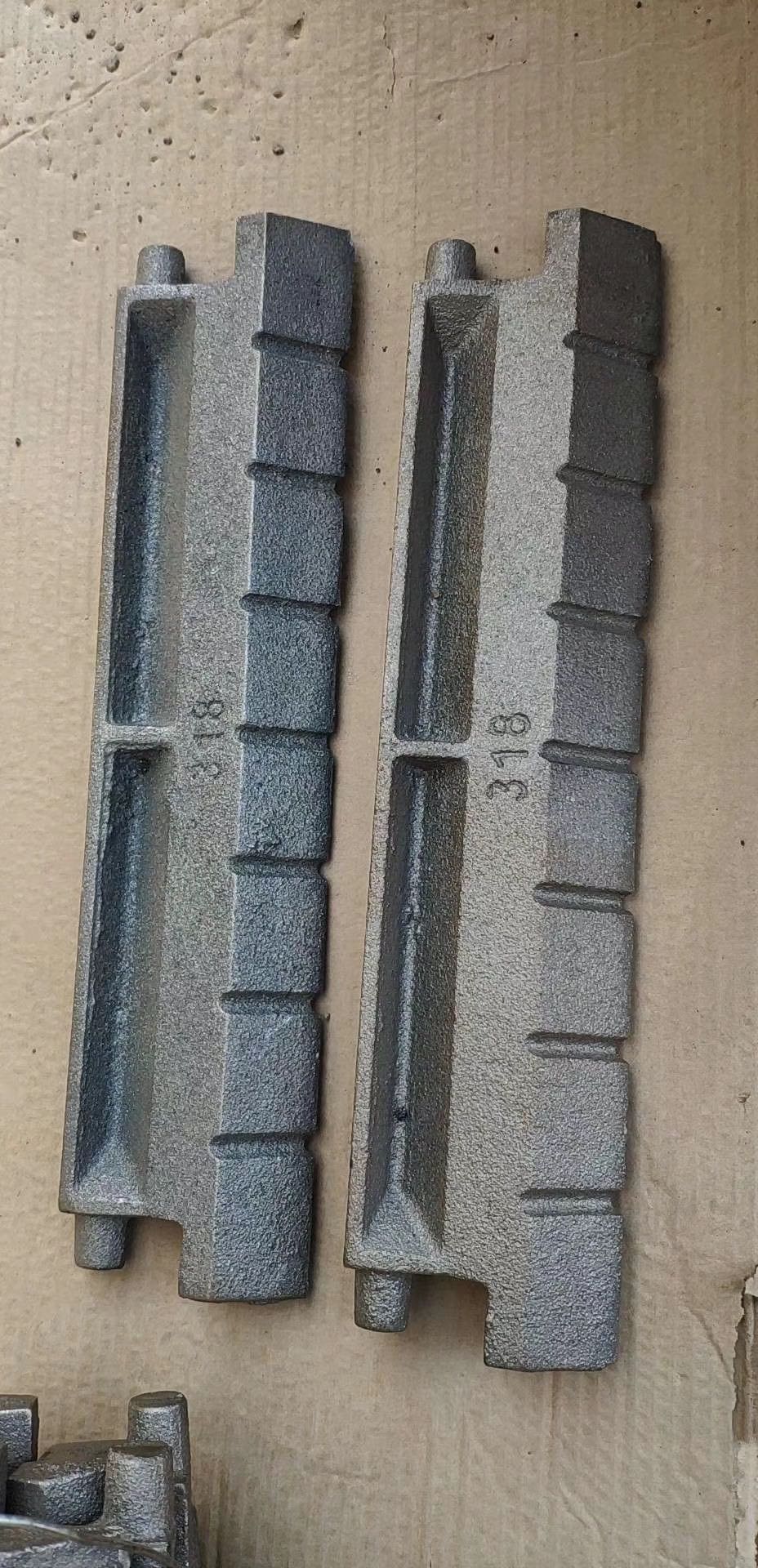

Heat Resistant Flake Type Chain Grate Stoker Manufacturer Fire Grate Bar


Oxidation Resistance

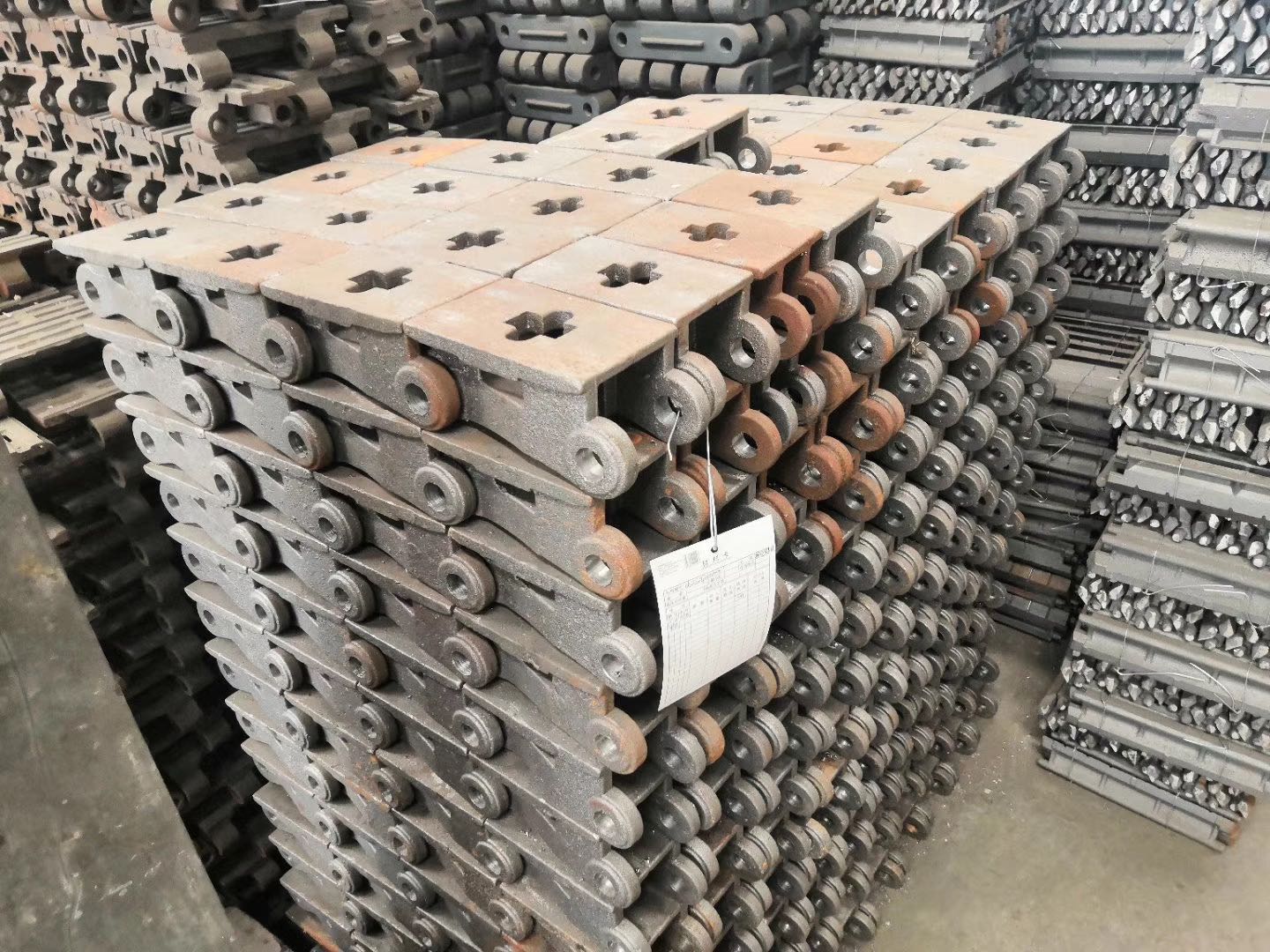

Flake type chain grate stoker(travelling grate),

Including small and large flake type

matching for 1-25t (samll),10-65t(large)Flake type chain grate stoker(travelling grate),

Including small and large flake type

Flake/squama type chain grate stoker (travelling grate) is a new style fire grate. It features compact, easy to install, not using longitudinal slag remover. During the period of installation, it is not necessary to install under guide rail and take civil engineering. What you need to do is to construct a concrete platform at site only. Not only it has the advantages of big squama type chain fire grate, such as good ventilation property, easy to maintain, etc but also it combines the features of light type chain belt fire grate, such as time saving and save labor when install.

It is whole quick assembling type fire grate with single layer arrangement. When purchase this kind of fire grate, customer needs small investment and low installation expense. Its performance of operation is constant and reliable. It is an ideal selection for small and middle boiler factory and use for boiler to match.


Detail

链条炉排使用的燃煤发热值5000大卡左右 煤仓内的燃煤未经过燃饶禁止经炉排倒运到除渣机中

·

Coal burning in coal bunker is not allowed to be transferred to the slag removal machine through the grate

·

·

燃煤含水量12%左右,最大飘粒度小于5厘米 炉排运行时尾部禁止带火,炉排运行时每班观察炉排片一次,炉排片损坏掉落及时更换禁止带病运行

·

When the grate is in operation, it is forbidden to carry fire in the tail. When the grate is in operation, observe the grate sheet once every shift. If the grate sheet is damaged or falls off, it is forbidden to replace it in time

·

·

炉排前轴后轴各注油孔处每班注油2(黄甘油)

·

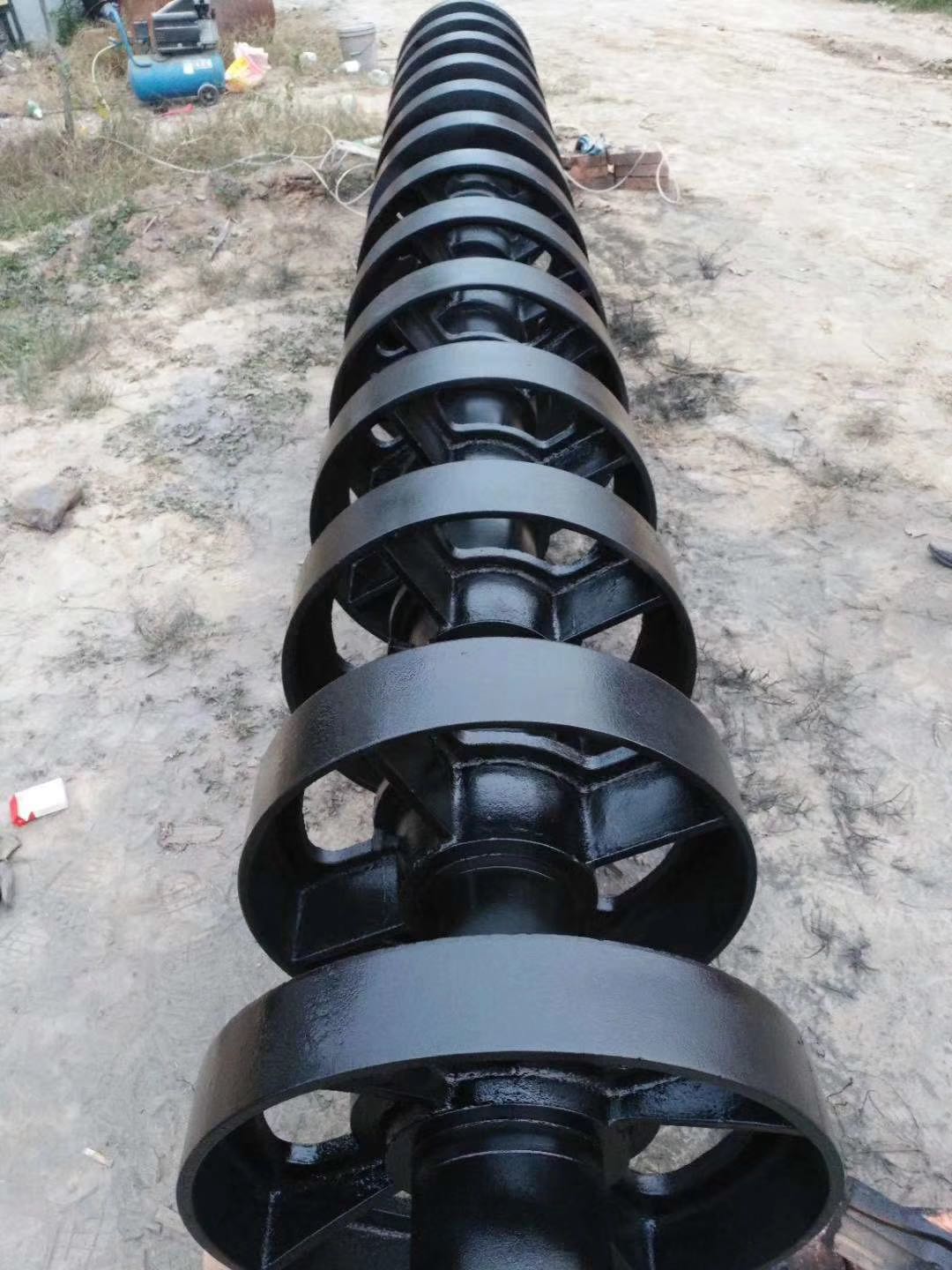

Oil injection twice per shift at each oiling hole of front axle and rear axle of the grate (glycerin)

·

·

炉排两侧有落灰扳手的,每班施动2次每次10分钟 每隔10天观察一次炉链松紧度,炉链松驰及时拉紧

·

On both sides of the grate with ash wrench, each shift 2 times 10 minutes each time every 10 days to observe the tightness of the furnace chain, the furnace chain tension in time

·
